Ventilation
-
LSVC302ST
(Ventilation - Range Hoods)LG Studio Series 30" Wall Mount Chimney Style Hood, with premium style and great features like a built-in timer and hidden controls.Its heat sensor reacts to high heat conditions by automatically boosting ventilator power to keep the cooking area as cool and comfortable as possible. Dimmer controlled halogen lights enable you to illuminate your cooking activity or to provide ambient light after hours.
Ask an Expert
- Documents
- Owner's manual
- Product specification
Product Features / Choose an option
HALOGEN LIGHTS
Dimmer controlled halogen lights enable you to illuminate your cooking activity or to provide ambient light after hours.
BUILT IN TIMER
12-hour timer lets you set ventilation time for entire cooking process. After cooking, the timer can be used to keep fan running for a preset period, allowing you to tend to other activities.
HEAT SENSOR
Reacts to high heat conditions by automatically boosting ventilator power to keep the cooking area as cool and comfortable as possible.
460 CFM
Powerful ventilator removes smoke, heat, and odors from your kitchen.
| GENERAL | |
|---|---|
| Series Name | Studio |
| Blower Included | Yes |
| Airflow | 460 CFM |
| Style | Chimney |
| Color | Stainless Steel |
| Installation | Wall Mount |
| FEATURES | |
| Dishwasher-Proof Filters | Yes |
| Ducting Information | Round |
| Speeds | 2 |
| Additional Information |
• Halogen lights (2 x 50W)with dimmer knob • Heat sensor • Built-in timer(12 hour timer) • Hidden controls. |
| ELECTRICAL INFORMATION | |
| Information | 120 V |
| CERTIFICATIONS AND APPROVALS | |
| Hvi Certified | No |
| Energy Star Certified | No |
| DIMENSIONS | |
| Class Width | 30" |
| Width | 29.88 inch(es) / 75.90 cm |
| Height | 12 inch(es) / 30.48 cm |
| Depth | 24 inch(es) / 60.96 cm |
| Weight | 56 lb(s) / 25.40 kg |
| Additional Dimensions |
• Overall Depth (from rear) 24" • Duct cover width 16" • Duct cover height 18" – 30" • Duct Cover Depth 12". |
| WARRANTY | |
| Warranty | 2 years parts and labor. |
| UPC | |
| UPC# | 048231316774 |
-

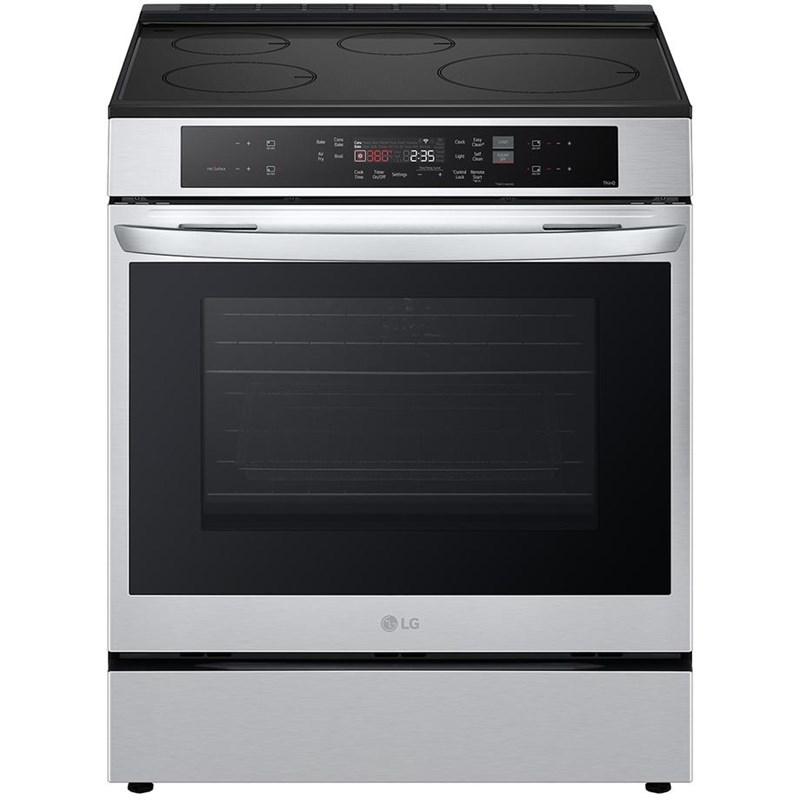

LG 6.3 cu. ft. Smart Induction Slide-in Range with Convection and Air Fry. The uniquely engineered induction + More
-
